Réf. DESIGNATION

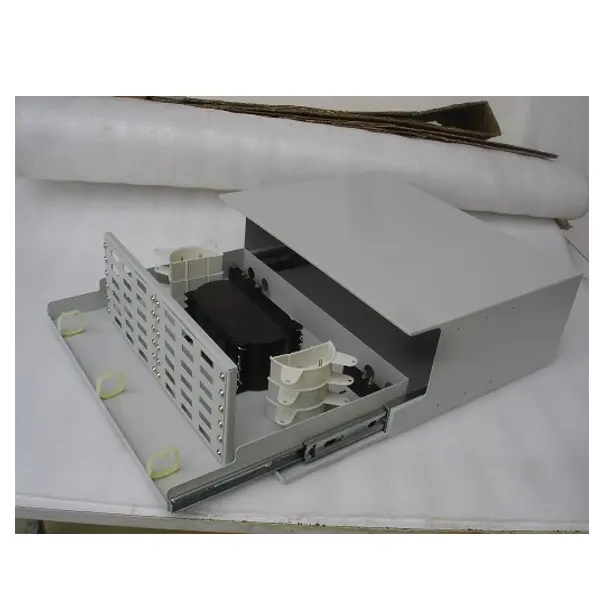

Models and references Slidable Rack-mount Fiber Optic Distribution Frame has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing. Model Fiber Quantity Height Dimension(mm) Weight(Kg) TS-ODF-SC48 4
Caractéristiques techniques
Prix communiqué par notre équipe selon vos besoins
Produits complémentaires et accessoires
Sur commandePorte avant en verre réversible avec verrouillage Porte arrière métal, pleine, réversible avec verrouillage Portes latérales avec crochets latéraux, verrouillage optionnel pour protection Raille de montage 19’’ en U marquée, largeur plus de 3cm Châssis élargi pour assurer une grande stabilité avec une grande capacité de charge Une conception spéciale du fond du rack pour une bonne capacité de char
Sur commandePorte avant en verre réversible avec verrouillage Porte arrière métal, pleine, réversible avec verrouillage Portes latérales avec crochets latéraux, verrouillage optionnel pour protection Raille de montage 19’’ en U marquée, largeur plus de 3cm Châssis élargi pour assurer une grande stabilité avec une grande capacité de charge Une conception spéciale du fond du rack pour une bonne capacité de char
Sur commandeCaractéristiques électriques et dimensionnelles 1 – Conducteur: 24 AWG, Cuivre massif recuit 2 – Isolation: Polyoléfine 3 – Assemblage en paires à pas courts différents (4 paires). 4 – 24AWG Fil de continuité en cuivre étamé 5 – Ecran Aluminium Polyester 6 – Gaine: PVC Résistance Max cc (Ω/km) @20ºC: 95.0 Capacité mutuelle nominale (nF/km)@1kHz: 56 Vitesse de propagation NVP (%): 65 Impédance moye
Sur commandePorte avant : Porte en verre trempé verrouillable, avec bordure métallique. Différents type de portes comme options Châssis: Structure boulonnée avec 60kgs de capacité de charge Entrée de câble: Entrées de câble sur le toit et sur le fond Accessoires: Ensemble complet d’accessoires optionnels, en plus des accessoires standards Emballage: Emballage plat recommandé, pour un gain d’espace de 2/3-3/4
Sur commandeIt is made of cold-roll steel box, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. And it has metal sliding fittings with self-locking functions prevent the drawer from falling when moved.
Sur commande– 4 port FTTX terminal box – FTTX suit for SC,FC,ST, LC adaptor -mini FTTH ODF FTTH terminal mini FTTH,FTTX terminal box 4 port for sc lc fc adapter – OFS-FTTH mini fiber termination box is designed specifically for FTTx application,and it protects fiber optic splices and helps to distribute. 1.Light weight, small size, easy installation. 2.Provide splice protection of fiber cable and pigtail.
Sur commandeModels and references * Easy Installation and Maintenance * High Reliability and Stability 1. More faster and more convenient way to change fiber adaptors, no need to screw adaptors onto the panel, simply insert the adaptors to the panel. 2. 45° panel, can be changed according to the cable managing directions. 3. When fiber count is below 24, blind covers can be purchased as options to prevent dus
Sur commandeFOSC72HCLIP horizontal joint box is a series of joint boxes, this joint box can be used for the installation of cable without cutting, flexibility is also strong, the sealing method adopts a unique way, the effect is good, and it is easy to repeat the operation. it has cable gland on each cable entry. A total of 4 ports (2 in 2 out), and suitable for Φ 10 to 18 mm cable. FOSC72HCLIP can support up
